100W CO2 Laser Cutter and Engraver with 1000x600mm Engraving Area | Max-1060R

£3,239.99

£3,239.99 ~~£3,959.99~~ Save£720

VAT included

Get FREE LightBurn+Laser Alignment Tool+Birch Plywood

Days

Hours

Mins

Secs

Laser Engraver

Max-1060R

Bundle

Machine with 3 FREE Accessories w. 5200 Water Chiller(with 3 FREE Accessories)

Delivery Option

Delivery without Forklift Unloadiing Delivery with Forklift Unloading

Product variants

Free shipping within UK mainland

Quantity

100W CO2 Laser Cutter and Engraver with 1000x600mm Engraving Area | Max-1060R

£3,239.99

£3,239.99 ~~£3,959.99~~ Save£720

Recommended software:
LightBurn software

Purchase on account for public institutions:
We give public institutions the opportunity to order machines on account. Please contact us via email at: support@omtechlaser.uk

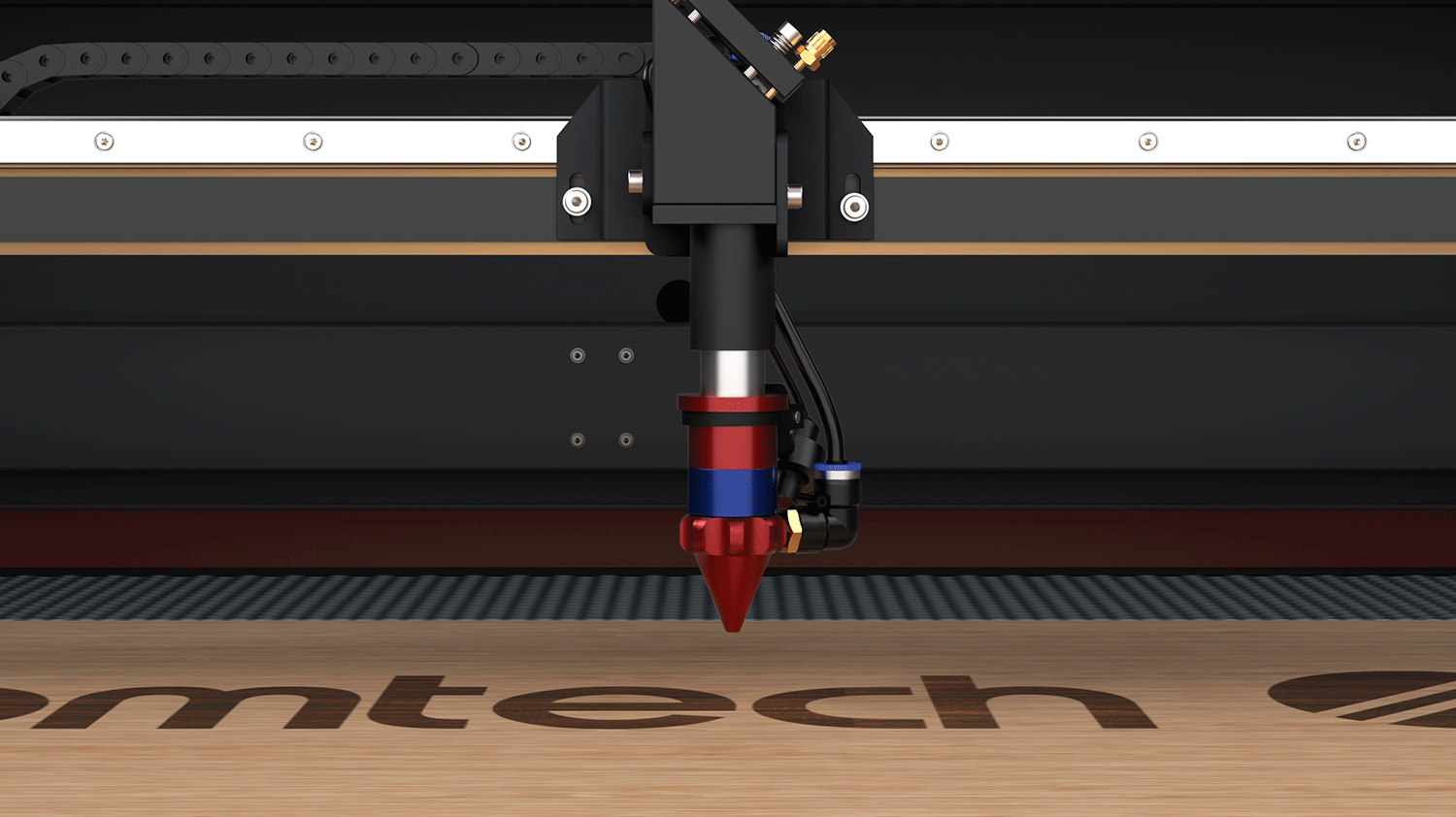

100W Powerful and Lightning Fast

Increase your efficiency and achieve impressive engraving speeds with our 100W laser engraver. With a maximum engraving speed of 600 mm/s, our device enables fast and precise engravings on a wide range of materials.

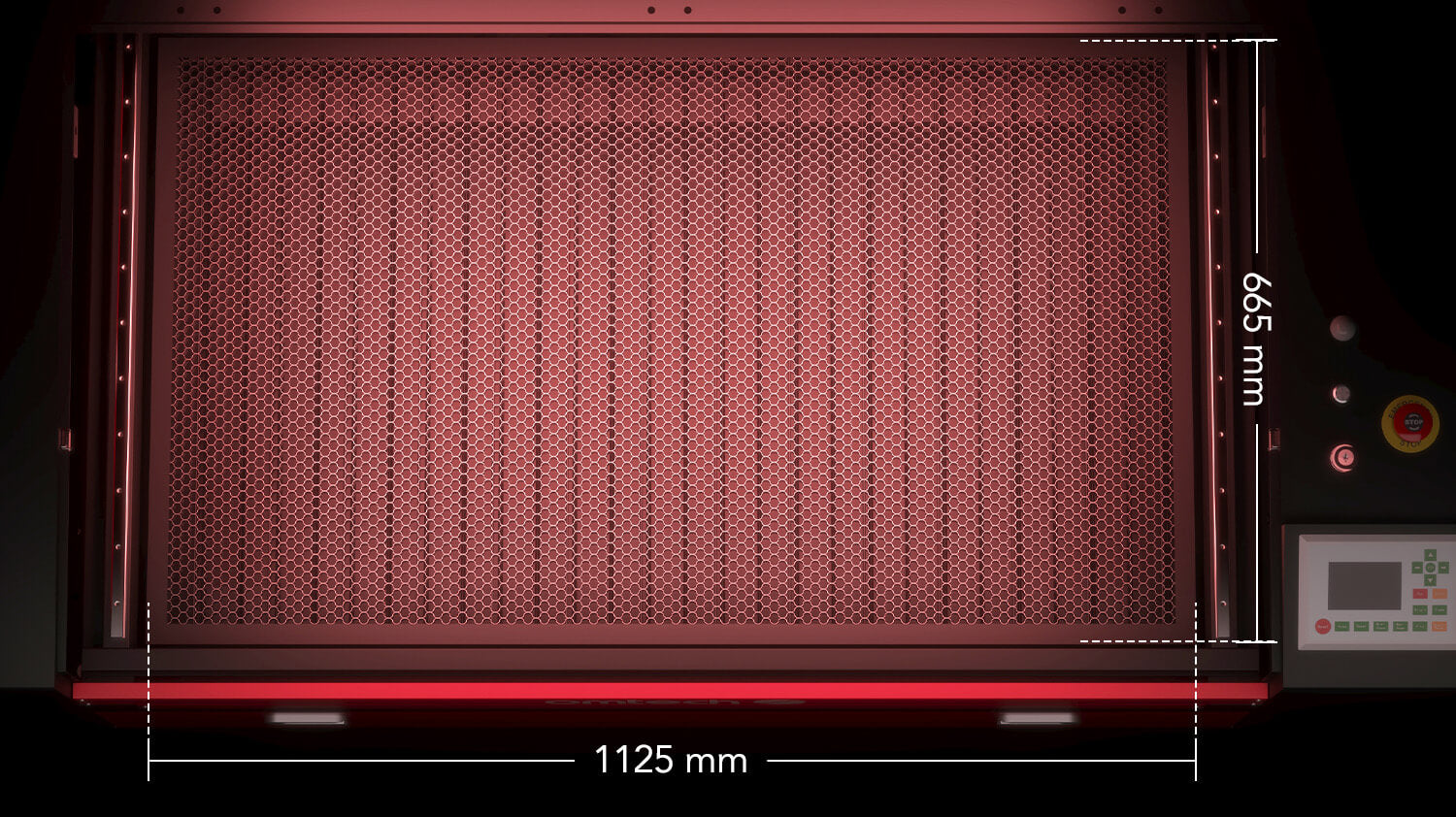

1000x600mm Processing Area

With a product size of 154x95x66cm and a net weight of 156kg, this CO2 laser engraving machine boasts a processing area of 1000x600mm and a loading area of 1125x665mm, allowing for the processing of larger objects. Simultaneous engraving or cutting of multiple parts enables efficient mass production.

Automatic Focusing

No more tedious manual adjustments or trial and error. You can easily focus the laser at the push of a button thanks to the motorized height-adjustable processing tables.

Compatible with Rotary Axes

Rotary axis (sold separately) compatibility enables precise 3D engraving of round and cylindrical objects such as cups, bottles, and spheres, opening up creative design possibilities.

Versatile Dual Height Adjustable Platforms

The honeycomb table provides precise support for small parts and enables reflection-free cuts on materials such as leather, paper, aluminum foil, and other soft substances. The aluminum slat table prevents reflections, offers ample space, and allows flexible adjustment of the slats. It is particularly suitable for processing acrylic glass, thick panels, and other hard materials.

Safety of CO2 Laser Engraving Machine Radiation Levels

Our OMTech CO2 laser engraving machine emits a wavelength of 10600 nm with a measured radiation power of 3.42 W/m2, well below the Class 1 limit of 1000 W/m2 for invisible lasers. This confirms that our machine is safe for prolonged use without causing harm to eyes or skin, ensuring a secure working environment for users.

Compatible with Multiple Software

Powerful DSP and FPGA processors ensure precise and fast processing of complex details and files with enormous sizes of up to 256 MB. Compatibility with popular LightBurn software (sold separately) and free RDWorks

Top-Level Safety Relays Certified by SGS

Our laser engraving machines use safety relays of the highest safety level. The safety relays are certified by the world's largest testing organization, SGS, and comply with the ISO 13849-1:2023 standard. The safety architecture and performance level meet PL e with Cat. 4.

Advanced Water Cooling System

Our engraver includes an advanced water cooling system to efficiently dissipate heat from the laser tube, ensuring optimal performance and extending the machine's lifespan.

Built-In Air Assist for Cleaner Cuts

The built-in air assist efficiently removes smoke and dust during operation, protecting your laser lenses and reflective mirrors. It ensures clearer cuts and extends the life of your machine, providing enhanced performance and longevity with every use.

Powerful Exhaust Fan

With a 75W AC motor running quietly at 2600 RPM, this exhaust fan delivers a continuous airflow of 9 m³/min, minimizing energy consumption while effectively maintaining a constant indoor air quality.The exhaust fan is included at no extra cost!

Laser Class 1 and CE Compliant

Thanks to its closed construction, locking system, emergency stop button, key switch, monitoring of water flow, and other safety devices, the OMTech Laser achieves Laser Class 1 for engraving on flat surfaces.

Technical Specifications

Product Information

Power Supply: 220-240V, 50Hz
Max. Engraving Speed: 600 mm/s
Focus Adjustment: Autofocus

Fire Protection Class of the PC Cover: V-2
Certification: CE
Product Dimensions (L×W×H): 154x95x66 cm
Package Dimensions (L×W×H): 174x112x93 cm
Net Weight: 156 kg

Working Area

Processing Area (L×W): 1000x600 mm
Loading Area (L×W): 1125x665 mm
Max. Workpiece Height: 120 mm
Processing Tables: Honeycomb and Aluminum Blade Tables
Height Adjustment: Automatic

About the Laser

Laser Type: CO2
Laser Power: 100W
Processing Accuracy: 0.01 mm
Laser Precision: up to 1000 dpi
Laser Wavelength: 10.6 μm

Laser Safety Class: Class 1 (With the optional pass-through, the laser machine becomes a Class 4 laser safety device)
Laser Tube Length: 1450 mm
Laser Tube Diameter: 60 mm
Laser Tube Lifespan: 8,000 hours (>70% power); 10,000 hours (40%–70% power); 12,000 hours (<40% power)

Air and Water Cooling

Laser Tube Cooling: Water Cooling
Exhaust Fan Airflow: 326 m³/hr.
Air Compressor Airflow: 30 L/min.
Laser Head Airflow: 15 L/min.

Software and Connection

Included Operating Software: RDWorks (Windows)

Compatible Operating Software: CorelLaser, LightBurn (Windows, MacOS), CorelDRAW, AutoCAD

Compatible Image Formats: .ai, .bmp, .dxf, .gif, .hpgl, .jpeg, .pdf, .plt, .png, .rd, .svg, .tiff, .tga

Graphic Operating Modes: Raster, Vector, or Combined Modes

Connection/Transmission: USB Flash Drive, USB Cable, Ethernet Cable

Warranty

2-Year Warranty on Parts

6-Month Warranty on Laser Tube and Power Supply

Package List

1 × 100W Laser Engraving Machine
1 × Water Pump
2 × Water Pipes
1 × Exhaust Pipe
1 × USB Flash Drive
1 × USB Cable
1 × Ethernet Cable
1 × Wrench Set
2 × Laser Keys
2 × Access Keys
1 × User Manual
