• Download the Manual
• Download the RDworks software
• NOTE: Does not include LightBurnSoftware
• Replacement:Laser Tube, Power Supply, Mirrors, Lens

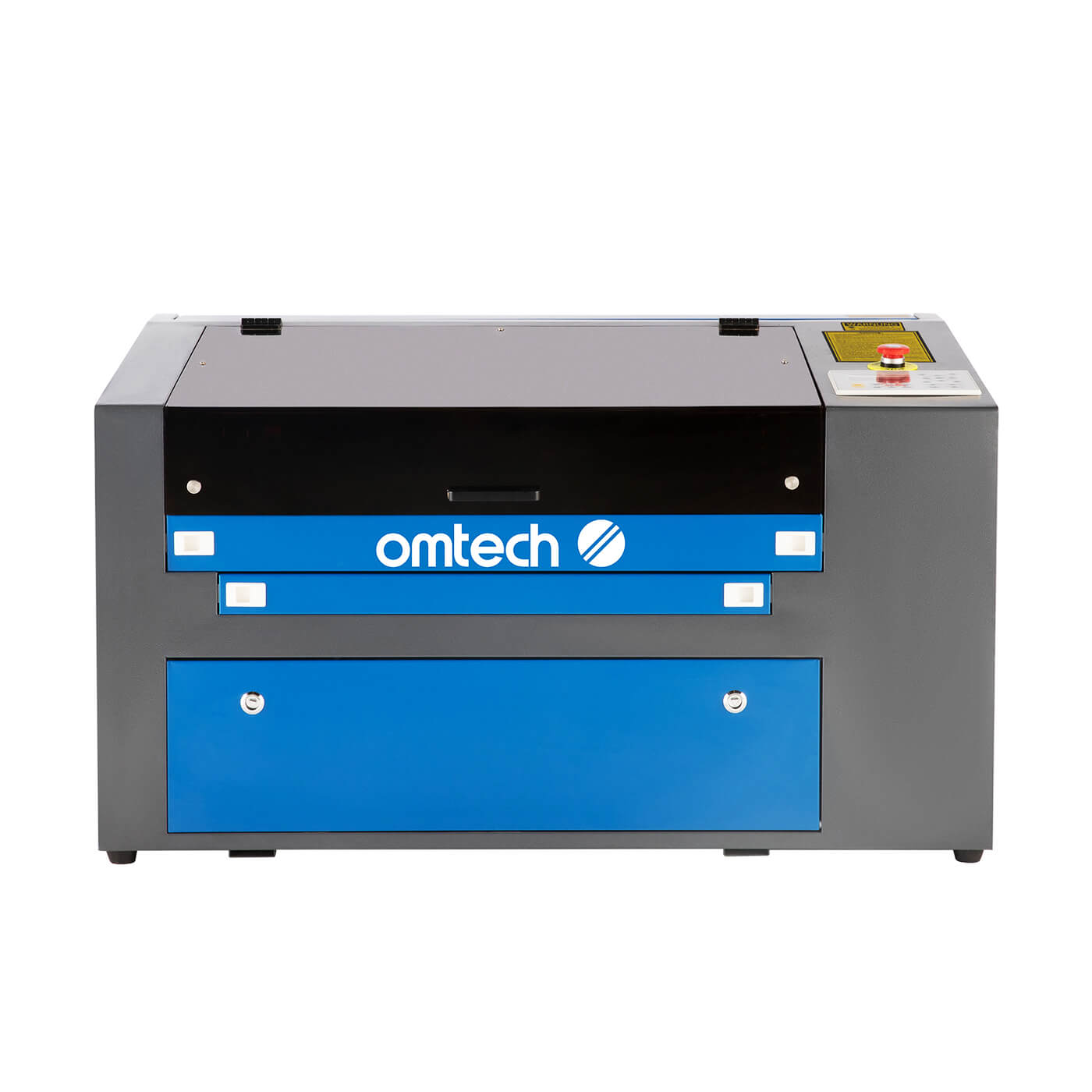

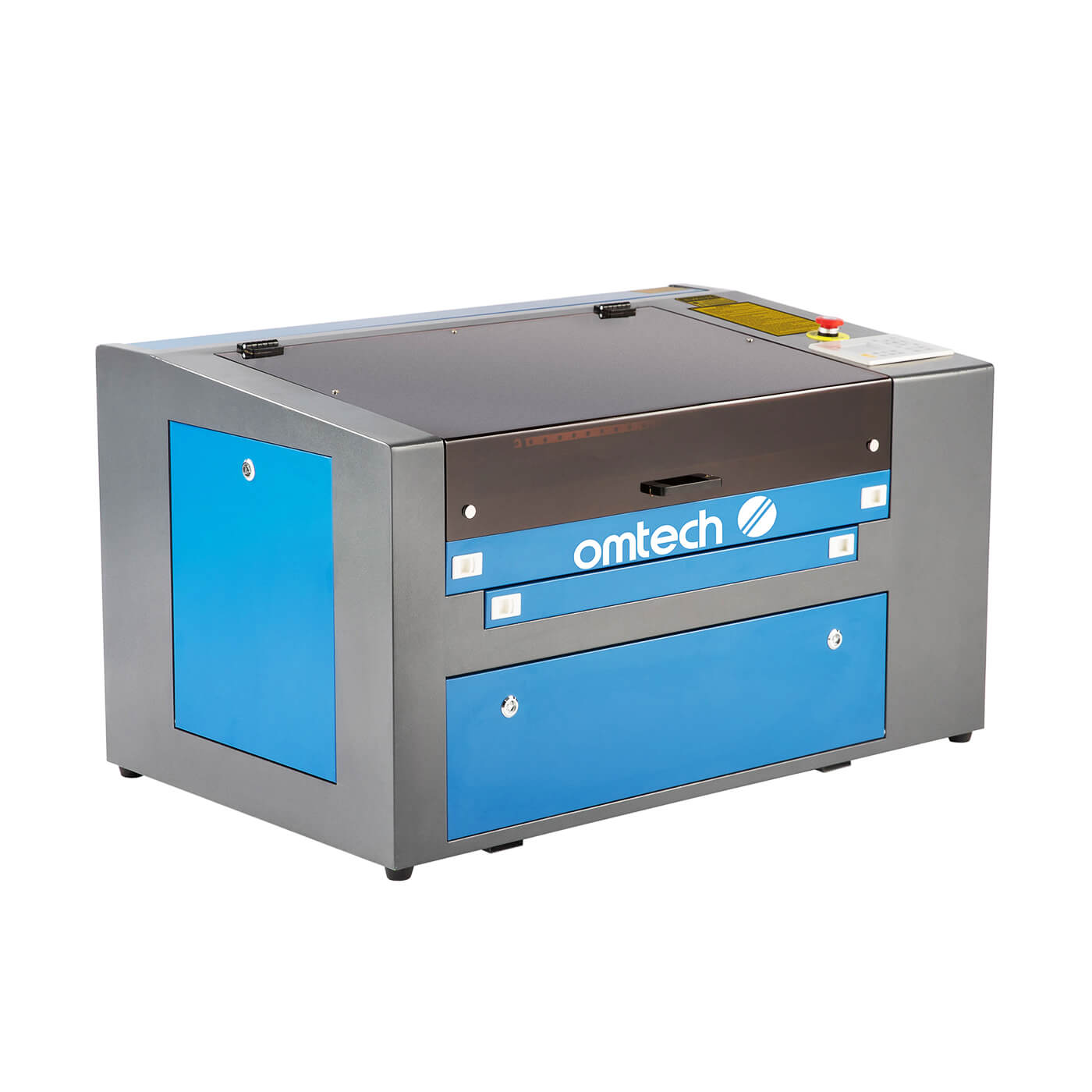

• COMMERCIAL CO2 LASER: Whether professional engraver or inspired DIYer, this 50W laser engraver and cutter from OMTech will allow you to bring your ideas to life with greater speed and precision than ever before, cutting up to 6 mm through plywood or acrylic; its intuitive control panel and bundled Windows-compatible editions of RDWorks v8 and CorelLaser will let you create and recreate even your most intricate designs perfectly
• 30x50 BED & PASS-THROUGH: The spacious 300x500 mm (12x20 in.) workbed provides 1.6 square feet of room to fit almost any project; the honeycomb and knife blade platforms handle pieces large or small, and the front and back 635x37 mm pass-through doors open up even greater possibilities
• FAST & QUICKLY ADJUSTABLE: This CO2 laser system marks wood, paper, plastics, leather, fabric, stone, and a wide range of other non-metallic materials at up to 600 mm per second with pinpoint accuracy; the knife blade bed adjusts up or down as needed; everything works with most third-party graphic software, easily receiving files via Ethernet or USB; and locking caster wheels allow you to easily move and secure your laser cutter whenever needed
• SAFE & EASY OPERATION: A digital laser power supply provides sure and easily monitored operation for your DC tube's expected 2000 hour life; password & key protection prevents unauthorized use; the wide viewing cover includes tinted eye protection & automatically cuts power when opened; a built-in air-assist quickly blows away smoke, dust, and sparks to protect your laser lenses and reflective mirrors; and a large capacity bin collects any debris as you work
• SUPERIOR SUPPORT & SERVICE: From garage artists to backyard businesses to professional workshops, the OMTech community continues to grow thanks to our passionate dedication to making quality engraving available to all; order your own engraver today and enjoy fast EU-based shipping, a strong 2 year general warranty (1/2 year for tube & power supply), and helpful customer service and tech support, available weekdays from 8 am to 5 pm PST
• Machine Dimensions: 104 x 65 x 50 cm (41x25.6x19.7 in.)
• Input Power: 220V/50Hz
• Rated Laser Power: 50W
• Est. Service Life: 2000 hr.
• Engraving Area: 300 x 500 mm (12x20 in.)
• Front & Rear Pass-Through Size: 635 x 37 mm (25x1.4 in.)
• Max. Engraving Table Height: 120 mm (4.7 in.)
• Max. Engraving Speed: 600 mm/s (23.6 ips)
• Max. Cutting Speed: 400 mm/s (15.7 ips)
• Max. Cutting Depth: 6 mm (0.25 in.)
• Positioning Accuracy: ±0.01 mm (±0.0004 in.)
• Max. Resolution: 4500 dpi
• Cooling Method: Water
• Compatible Operating Systems: Windows 2000, XP, Vista, 7, 8, 10
• Bundled Software: RDWorks v8.0, CorelLaser
• Supported Software (not incl.): CorelDRAW, AutoCAD, LightBurn
• Data Transmission: USB Cable, Ethernet Cable, USB Flash Drive
• Net Weight: 75 kg (165 lb.)
• Warranty: 1 Years (6 Months for Tube & Power Supply)
• The Ruida control board works seamlessly with RDWorks for Windows PC (included), Corellaser(included), and LightBurn (not included)
• RDWorks (included), CorelDRAW (not included), AutoCAD (not included) and LightBurn (not included) are compatible with Windows 7, 8, 10 (64/32 bit), XP, 2000, and Vista.
• The Ruida controller is compatible with macOS (Version 10.11 and higher) ONLY if you use LightBurn software (not included)
• Photo-ready to convert images from HPLG, BMP, GIF, JPG, JPEG, DXF, DST, AI formats, and more into .RD files for laser processing.
• 4-Pin Port connection for rotary axis devices.
• RUIDA DIGITAL CONTROLLER: The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8 and CorelLaser.
• USB & ETHERNET PORTS: 2 USB ports allow flash drive connectivity and a USB-to-USB PC connection. Plus, the ethernet connection is compatible with PCs.
• LINEAR RAIL GUIDING SYSTEM: Equipped with X and Y stepper motors for efficient power transmission between the guide rails with high precision and long service life.
• VIEWING WINDOW: A transparent acrylic glass viewing window allows observation throughout the laser engraving process. Plus, it’s equipped with a sepia tint to protect your eyes from indirect laser beam exposure.
• RED DOT GUIDANCE: A red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies positioning sizes, allowing an effortless project setup process.
• ADJUSTABLE LASER NOZZLE: The laser nozzle can extend downwards up to 4.5 cm or be fully retracted, allowing more control over different focal distance setups.
• AIR ASSIST: A pre-installed air compressor guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping your work cleaner and engravings more precise.
• BUILT-IN VENTILATION: A pre-installed vent fan expels smoke and fumes to create a safer workspace and extends the service life of your machine.
• WATER COOLING SYSTEM: Pre-installed hoses along with the included water pump allow for a fast and easy setup. Only use with distilled water, ensuring it stays between 16–21°C (60–70°F).
• WATER FLOW SENSOR: A pressure flow sensor monitors water flow throughout the laser engraving process and prevents the laser from firing if the water stops circulating through the laser tube.
• AUTOMATIC SHUTDOWN: The auto-shutdown safety feature stops the machine when opening the transparent window cover. Once closed, press the “Enter” button to continue operation.
• 50W CO2 laser tube with an estimated lifetime of up to 2,000 operation hours depending on power setting usage and water cooling performance
• PLEASE NOTE: Frequent use of high laser power settings will shorten the laser tube lifetime as follows:
• Low Power 10–40% = 1,700–2,000 Hours
• Moderate Power 40–70% = 1,300–1,500 Hours
• High Power 70–100% = 800–1,000 Hours
AVERAGE PARAMETER SETTINGS: CLICK HERE
• RUIDA DIGITAL CONTROLLER: The intuitive control panel with a digital display allows complete control of the laser head, pausing and stopping projects, adjusting laser power and speed settings, file viewing, and project framing via Windows-compatible RDWorks v8 and CorelLaser.
• USB & ETHERNET PORTS: 2 USB ports allow flash drive connectivity and a USB-to-USB PC connection. Plus, the ethernet connection is compatible with PCs.
• LINEAR RAIL GUIDING SYSTEM: Equipped with X and Y stepper motors for efficient power transmission between the guide rails with high precision and long service life.
• VIEWING WINDOW: A transparent acrylic glass viewing window allows observation throughout the laser engraving process. Plus, it’s equipped with a sepia tint to protect your eyes from indirect laser beam exposure.
• RED DOT GUIDANCE: A red dot pointer mounted on the laser head quickly indicates engraving points, marks the machine’s path, and identifies positioning sizes, allowing an effortless project setup process.
• ADJUSTABLE LASER NOZZLE: The laser nozzle can extend downwards up to 4.5 cm or be fully retracted, allowing more control over different focal distance setups.
• AIR ASSIST: A pre-installed air compressor guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping your work cleaner and engravings more precise.
• BUILT-IN VENTILATION: A pre-installed vent fan expels smoke and fumes to create a safer workspace and extends the service life of your machine.
• WATER COOLING SYSTEM: Pre-installed hoses along with the included water pump allow for a fast and easy setup. Only use with distilled water, ensuring it stays between 16–21°C (60–70°F).
• WATER FLOW SENSOR: A pressure flow sensor monitors water flow throughout the laser engraving process and prevents the laser from firing if the water stops circulating through the laser tube.
• AUTOMATIC SHUTDOWN: The auto-shutdown safety feature stops the machine when opening the transparent window cover. Once closed, press the “Enter” button to continue operation.
• 1 x 50W Laser Engraver
• 2 x Keys
• 1 x Ethernet Cable
• 1 x USB Cable
• 1 x Power Cord
• 1 x Ground Wire
• 1 x Water Pump
• 1 x Roll of Double-Sided Tape
• 1 x Tube of Silicone Insulation
• 1 x 7 mm Acrylic Focus Tool
• 1 x Exhaust Pipe
• 2 x Water Hoses
• 1 x Stainless Steel Clamp
• 1 x USB Flash Drive with Software
• 1 x Maintenance Tool Set
• 1 x Instruction Manual
• No need to worry! We offer a 1-year parts warranty on all machines.
• 6-month warranty on laser tubes and laser power supplies 80W and up
